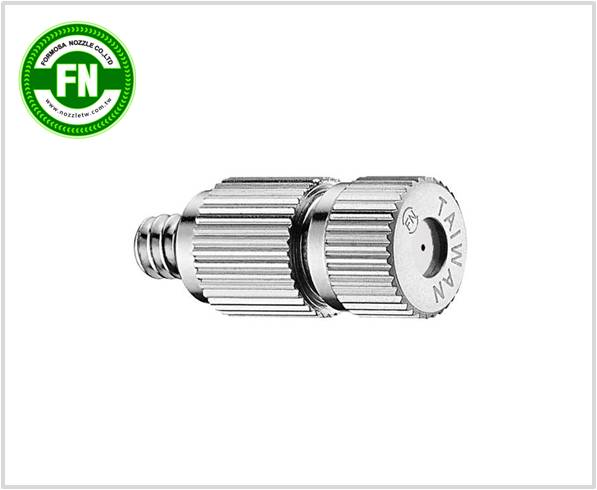

Ceramic disc nozzle FN-CD SD RCD RSD
Ceramic disc nozzle
Nickel-plated brass body ＆ ceramic orifice
Inclusions: O-rings, sealing valves, springs, turn the core.
Water valves are made of Viton or EPDM.
陶瓷片噴頭
黃銅本體鍍鎳+陶瓷噴片
內含物 : O型環、止水閥、彈簧、轉芯
止水閥皆採用 Viton 或 EPDM 材質
外牙 Male Thread
10/24UNC
|
編號 ORDER NO. |
孔徑規格 Aperture Size |
|
FN-CD10 |
0.1mm |
|
FN-CD15 |
0.15mm |
|
FN-CD20 |
0.2mm |
|
FN-CD30 |
0.3mm |
|
FN-CD40 |
0.4mm |
|
FN-CD50 |
0.5mm |

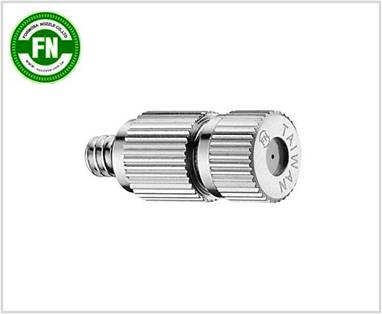

Stainless steel disc nozzle FN-SD
Stainless steel disc nozzle
Nickel-plated brass body ＆ Stainless steel orifice
Inclusions: O-rings, sealing valves, springs, turn the core.
Water valves are made of Viton or EPDM.
不鏽鋼片噴頭
黃銅本體鍍鎳+不鏽鋼噴片
內含物 : O型環、止水閥、彈簧、轉芯
止水閥皆採用 Viton 或 EPDM 材質
外牙 Male Thread
10/24UNC
|
編號 ORDER NO. |
孔徑規格 Aperture Size |
|
FN-SD10 |
0.1mm |
|
FN-SD15 |
0.15mm |
|
FN-SD20 |
0.2mm |
|
FN-SD30 |
0.3mm |
|
FN-SD40 |
0.4mm |
|
FN-SD50 |
0.5mm |

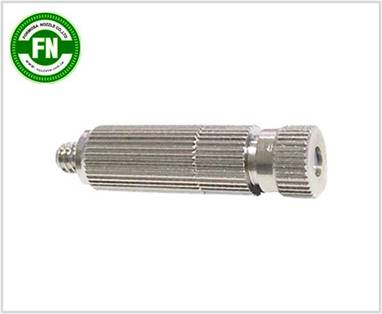

Filter tube ceramic disc nozzle FN-RCD
Filter
tube ceramic disc nozzle
Nickel-plated
brass body＆ ceramic orifice
Inclusions: O-rings, sealing valves, springs, turn the core, filter tubes.
Water valves are made of Viton or EPDM.
濾管陶瓷片噴頭
黃銅本體鍍鎳+陶瓷噴片
內含物 : O型環、止水閥、彈簧、轉芯、濾管
止水閥皆採用 Viton 或 EPDM 材質
外牙 Male Thread
10/24UNC
|
編號 ORDER NO. |
孔徑規格 Aperture Size |
|
FN-RCD15 |
0.15mm |
|
FN-RCD20 |
0.2mm |
|
FN-RCD30 |
0.3mm |
|
FN-RCD40 |
0.4mm |
|
FN-RCD50 |
0.5mm |

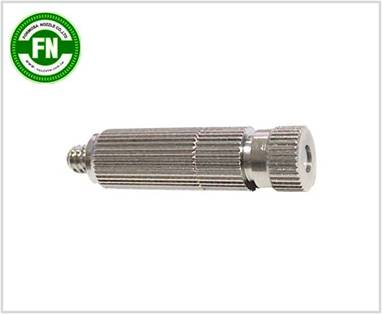

Filter tube stainless steel disc nozzle FN-RSD
Filter
tube stainless steel disc nozzle
Nickel-plated
brass body＆ Stainless steel
orifice
Inclusions: O-rings, sealing valves, springs, turn the core, filter tubes.
Water valves are made of Viton or EPDM.
濾管不鏽鋼片噴頭
黃銅本體鍍鎳+不鏽鋼噴片
內含物 : O型環、止水閥、彈簧、轉芯、濾管
止水閥皆採用 Viton 或 EPDM 材質
外牙 Male Thread
10/24UNC
|
編號 ORDER NO. |
孔徑規格 Aperture Size |
|
FN-RSD15 |
0.15mm |
|
FN-RSD20 |
0.2mm |
|
FN-RSD30 |
0.3mm |
|
FN-RSD40 |
0.4mm |
|
FN-RSD50 |
0.5mm |
